Modern Fashion Prefab Light Steel Framing Small Resort Garden Studio Cabin House From Chinese Supplier

Short Description:

Prefabricated housing is a new type of environmentally friendly and economic activity house that uses light steel as the skeleton, sandwich panels as the enclosure material, spatial integration standard module series, and component bolt connections.

Frame: Galvanized steel structure

Wall: Sandwich panel (rock wool,EPS,glass wool)

Color: White,Grey,Black,Custom color

Layout: Flexible Customized

Life Span: More than 20 years

Packaging Details: container loaded,or according to customer requirements

Product Type: Prefabricated House

Send email to us

Product Detail

FAQ

Factory one-stop service

Product Tags

Prefabricated House is a type of integrated house,

which is a house that can be assembled with prefabricated house parts.

This kind of house is cheap, fast to build,

and has good waterproof and heat insulation properties.

Product Structure

Product Name	Worker Accommodation K House Type For Construction Fast Build Low Cost Sandwich Panel House Prefabricated House
Main structure	Galvanized steel frame
Roof	Triangular roof, glass wool insulation
Wall	EPS/Rock wool/Glass wool sandwich panel
Thickness of sandwich panel(mm)	50/75/100/150
Door	Aluminum alloy/steel/sandwich panel
Window	Aluminum Alloy Window,plastic steel window
Structure	Galvanized steel frame
Fire-proof	Grade A
Water-proof	360 degree connection,better waterproof
Certificate	CE ISO

Provide various high-quality accessories

It can be easily and quickly assembled and disassembled, achieving universal standardization of

temporary buildings, establishing the concept of environmental protection, energy conservation,

fast and efficient construction, and enabling temporary houses to enter a standardized product

field of series development, integrated production, supporting supply, inventory and multiple

turnover, and multifunctional use.

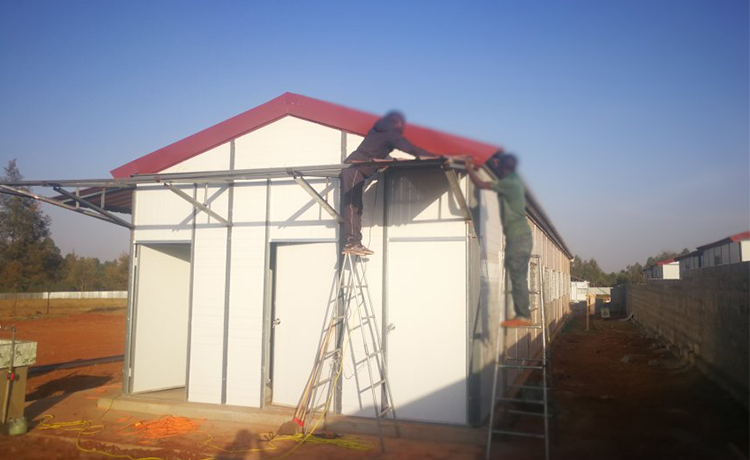

About Foundation	About Wall System	About Roof System
The foundation of the prefab house can be either a strip foundation or a concrete plane.Use expansion bolts to drive C steel into the concrete foundation to secure the house. The construction speed is very fast and very easy.	Wall systems are usually divided into horizontal and vertical panels.Adopt 75mm EPS, rock wool sandwich panel according to the different style, use different method to install the corresponding wall pane	The roof system consists of roof trusses and roof cladding.It can be designed as a two-sided slope, a single-sided slope, and afour-sided slope.The wire is laid from the steel frame, with better aesthetic
