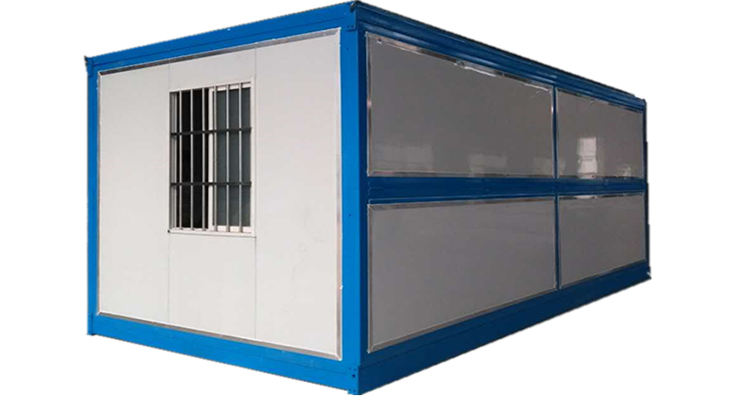

Easy assembled foldable prefabricated house folding prefab container homes
1,Easy to transport: Folding container houses are designed to be easily transported
to different locations, making them ideal for temporary or mobile housing solutions.
2,Quick assembly: These houses can be quickly assembled on-site, reducing construction time and labor costs.
3,Space-saving design: Folding container houses can be folded up when not in use, saving space
and making them easy to store.
4,Customizable: These houses can be customized to meet specific requirements, such as size, layout, and design.
Product Structure
ITEM | SPECIFICATION |
Opening Size | 5850mm*2438mm*2620mm |
Folding Size | 5850mm*2438mm*560mm |
Roof | The main frame is made of galvanized steel,0.45mm thickness aluminum-zinc color steel sheet, PE finishing coat. 360° special waterproof method.,1.0mm PE resin film |
Floor | 18mm cement silicon calcium plate |
Columns | 2.5mm galvanized steel structure |
Electrical System | 1 air conditioner socket,2 conventional sockets,1 single swich,2 ceiling lamps,1 distribution box,16A air switch of one,1 set of industrial socket,1 industrial socket box |
Packing | Parts packing with plastic film |
Wind Resistance | Wind speed≤120 km/h |
Earthquake Resistance | Grade 8 |

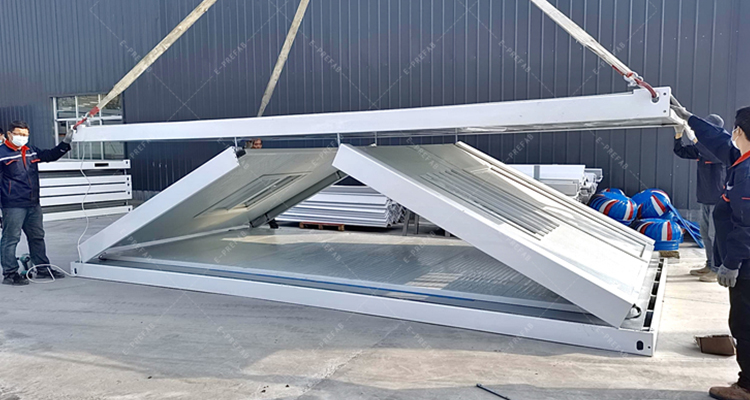

95% of this House is prefabricated in the factory. The installation is very simple.After installation, the 20ft
house size is L5850*W2438*H2620mm, with 14.14 sqm in area.Folded size is L5850*W2438*H560mm,
so 8 houses can be easily packed into one 40HC shipping container for transportation.
Convenient installation Beautiful appearance, reasonable design, fast installation
speed,flexible and mobile, reusable, economical and practical
NEW Flat Pack Container House | traditional shipping container | |
Container Size: | 5850mm*2438mm*2620mm | 6058mm*2438mm*2591mm |
Transport Cost: | 40HQ can load 8 units | 40HQ can load 0 units |
The Container: | Repeatable disassembly an aseembly | Can not be disassembled |
Good applicability, beautiful appear-ance, reasonable design, goodload-bearing, solid overall structure
Application Scenario
